Xona Rotor 105.69S Ball Bearing Turbocharger
- Compressor wheel - 72mm Inducer / 99mm Exducer.
- Turbine Outlet - 69mm
- 105lb/Minute Flow Rating.
- 550-1100HP Applications.
- Variable preload angular contact bearings.
- Twin gas ring seals at the compressor and turbine.
- High strength, lightweight stainless steel center housing.
- Full hydraulic damping of the rotating assembly .
- Integrated oil contaminate filter.
- M62 race material allows higher temperature operation.
- Metallic bearing cages.
Product Information
The revolutionary UHF aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

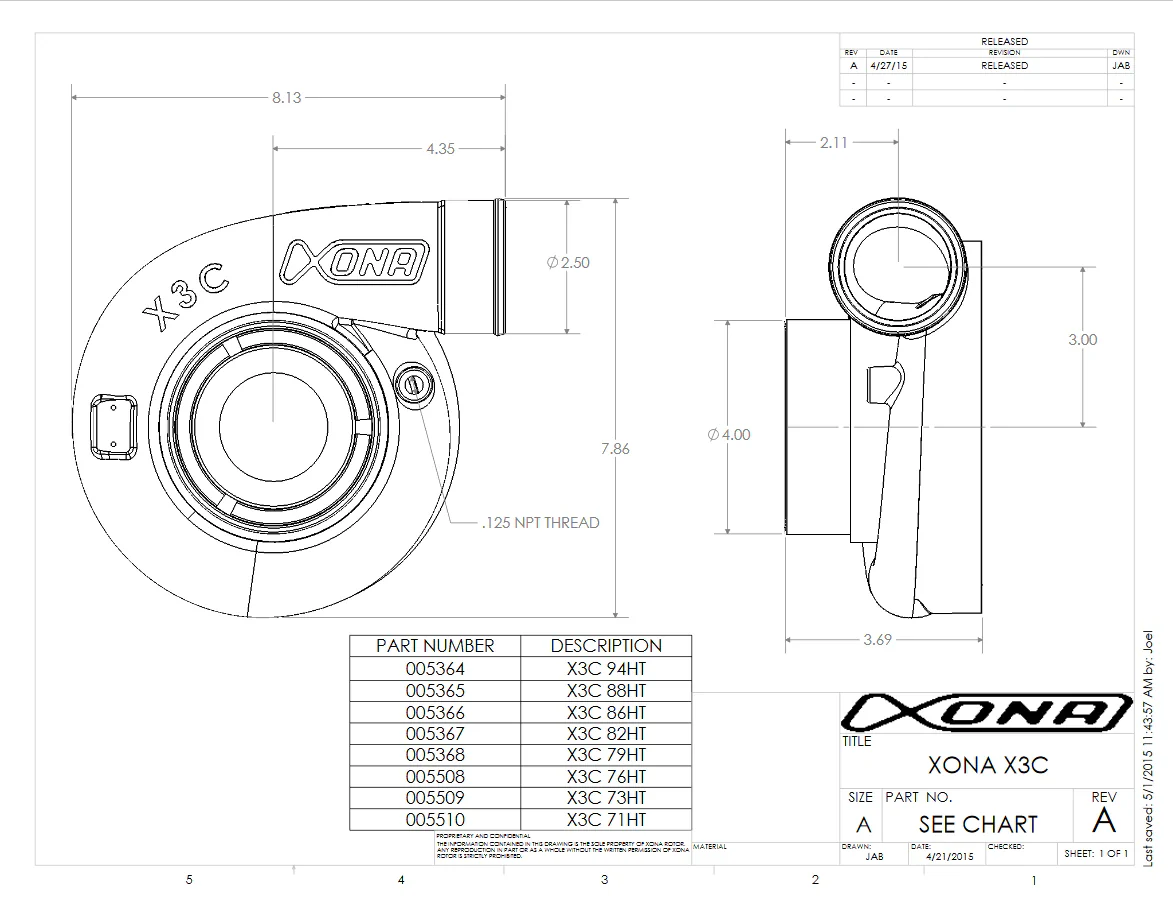

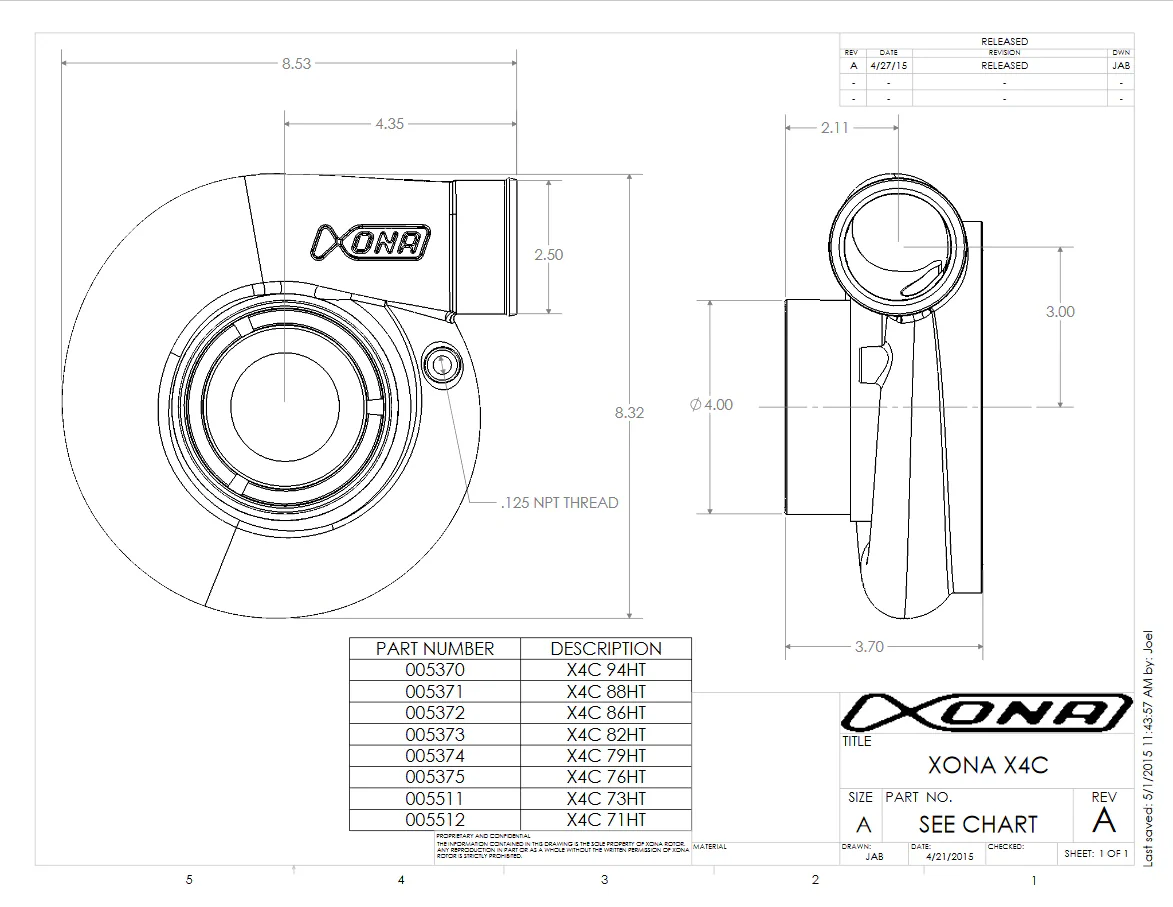

This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
Select Compressor Cover Size
Select Coat Turbine Housing
Select XR Turbine Housings 69s
From $650.70
Original: $2,169.00
-70%Xona Rotor 105.69S Ball Bearing Turbocharger—
$2,169.00
$650.70
Description
- Compressor wheel - 72mm Inducer / 99mm Exducer.
- Turbine Outlet - 69mm
- 105lb/Minute Flow Rating.
- 550-1100HP Applications.
- Variable preload angular contact bearings.
- Twin gas ring seals at the compressor and turbine.
- High strength, lightweight stainless steel center housing.
- Full hydraulic damping of the rotating assembly .
- Integrated oil contaminate filter.
- M62 race material allows higher temperature operation.
- Metallic bearing cages.
Product Information
The revolutionary UHF aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.
This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
