JDY Conrod For 2.5 TFSI Audi RS3 TTRS 2.5L 5Cyl Series
JDY Conrod

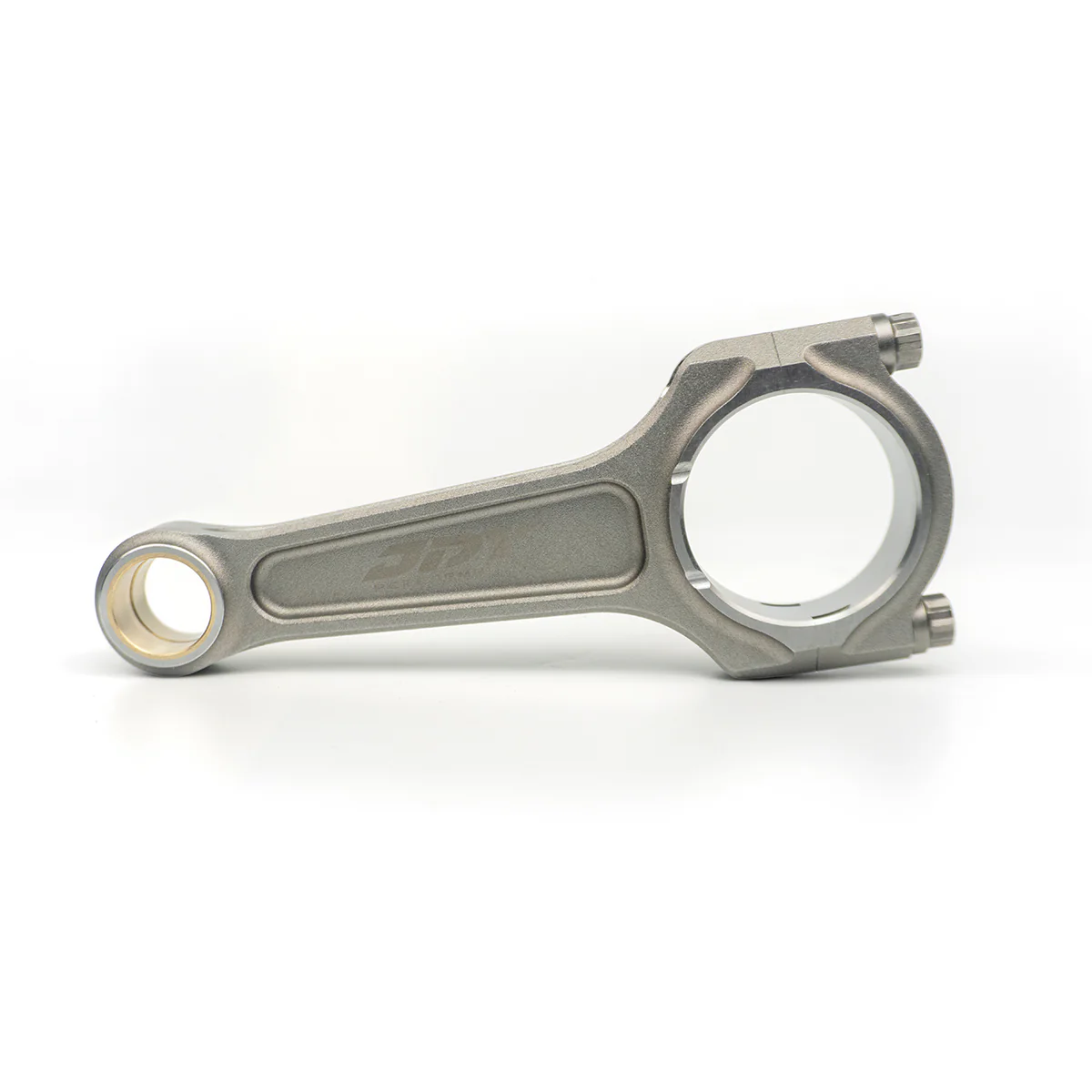

i-Beam steel connecting rods 2.5L TFSI engines with chain (EA855) are designed for an extreme performance (275HP/Per CYL). This will increase the performance of your Audi TTRS/RS3.
In order to optimally lubricate the piston pins and protect the engine parts from abrasion, the connecting rods come with an additional drilling All JDY connecting rods are precisely angled and tested. Included are of course 3/8" ARP 2000 expansion bolts and the assembly paste.
ARP Age 625+ bolts are available as optional.
All JDY H.D. Conrod Features:
-1. Extra thickness for iBeam provides more strength.
-2. Deep drilled oil tunnel for lubricant, to let engine oil pass between piston pins and engine bearings.
-3. Extra oil groove for the small side, to ensure best lubrication for piston pins.
-4. Extra oil groove on the crank side, to make secure lubrication for the crankshaft side

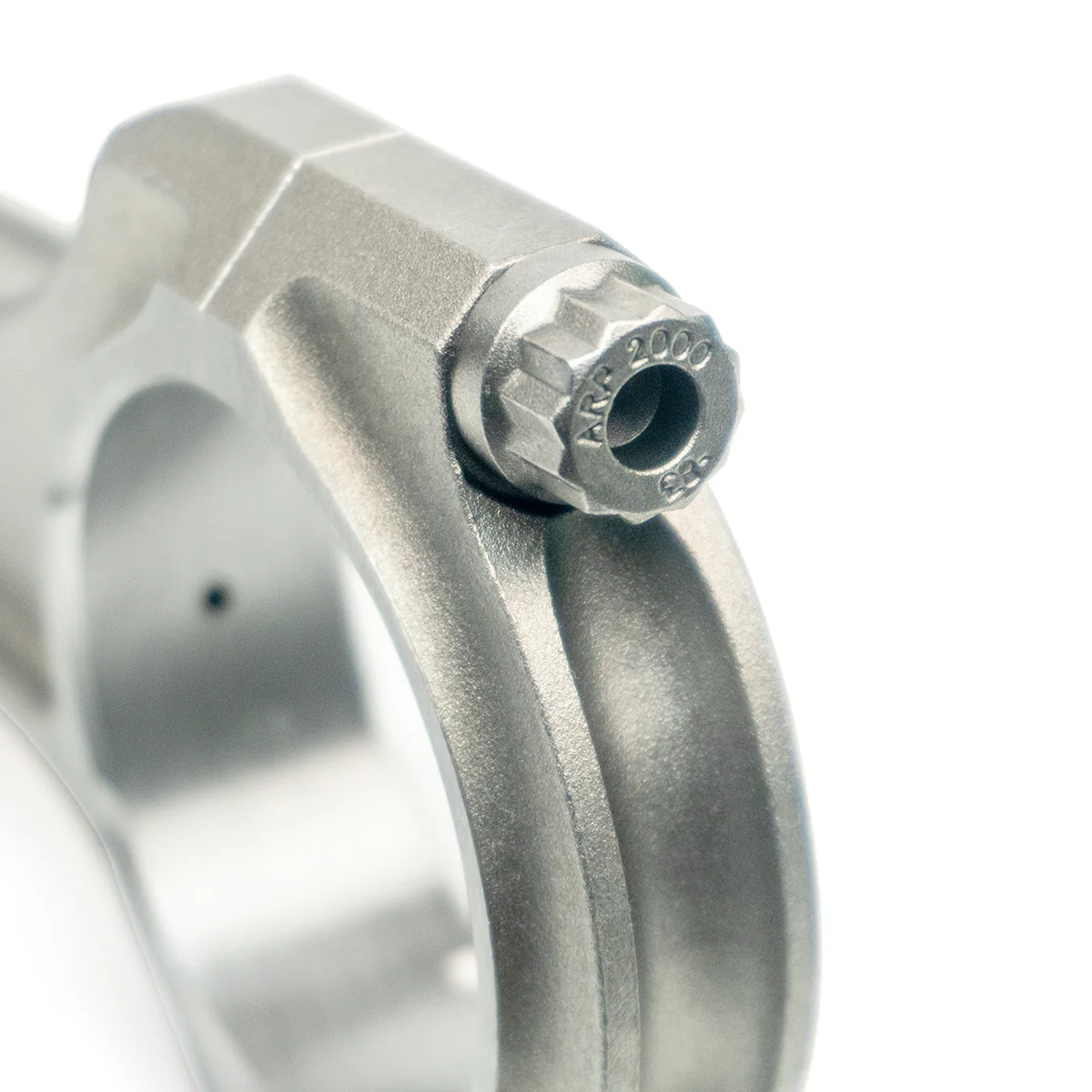

-5. High-quality ARP2000 conrod bolts
| Type | Size Inch | Size metrich | Stretch Inch | Stretch mm |
|---|---|---|---|---|
| ARP 2000 | 5/16" x 1.500" | 7,9mm x 38,1mm | 0.0056" | 0.14224mm |
| ARP 8740 | 3/8" x 1.600" | 9,5mm x 40,64mm | 0.0047" | 0.11938mm |
| ARP 2000 | 3/8" x 1.600" | 9,5mm x 40,64mm | 0.0058" | 0.14732mm |
| ARP 8740 Wave Loc Bolt & Nut |
3/8" | 9,5mm | 0.0063" | 0.16002mm |
| ARP 8740 | 7/16" x 1.400" | 11,1mm x 35,56mm | 0.0046" | 0.11684mm |
| SCAT 2001 | 7/16" x 1.500" | 11,1mm x 38,1mm | ||
| ARP 8740 | 7/16" x 1.600" | 11,1mm x 40,64mm | 0.005" | 0.127mm |
| ARP 2000 | 7/16" x 1.600" | 11,1m x 40,64mm | 0.0062" | 0.15748mm |
| ARP 8740 | 7/16" x 1.800" | 11,1mm x 45,72mm | 0.006" | 0.1524mm |
| SCAT 2000 | 7/16" x 1.800" | 11,1mm x 45,72mm |
Original: $885.00
-70%$885.00
$265.50
